Item No.
|
Light source
|
Lens beam angle(°)
|
Consumption(watt)
|
Input Voltage(V)
|
Ik rate
|
|
8210241
|
24x1W LED
|
15°/25°/30°/45°/60°
/asymmetrical lens
|
DC12V
|
24.5
|
08
|
|
8210241H
|
24x1W LED
|
10.8
|
AC100-240V
|
24.5
|
08
|
|
8210242
|
24x2W LED
|
15.2
|
DC24V
|
48.6
|
08
|
|
8210242H
|
24x2W LED
|
20
|
AC100-240V
|
48.6
|
08
|
|

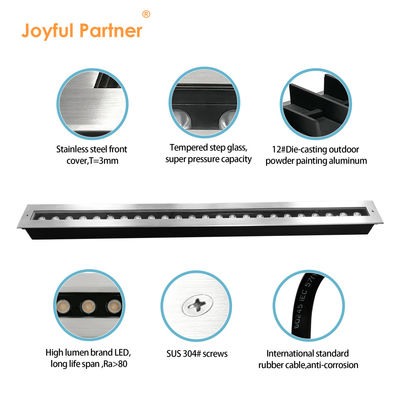

Material specifications
|
|
|
|
Housing
|
Outdoor dark grey powder coated aluminum T=60-80μm Adhesion ISO Glass 1/ASTM Glass 4B
|
|
|
Front cover
|
Hard chrome plate 304# or 316#Stainless Steel
|
|
|
Lens
|
Optical lens,effciency≥85%
|
|
|
Glass
|
Tempered step glass T=7mm
|
|
|
Glass pressure capacity
|
Full area= 1700kgs
|
|
|
Gasket
|
Molding shaped silicone seal
|
|
|
Operating temperature
|
(-20℃~40℃)
|
|
|
Power cable
|
H05RN-F2*0.75mm²L=0.5m(low voltage)
H05RN-F3*0.75mm²L=0.5m(for single color/high voltage) |
|
|
Mounting sleeve
|
ABS
|
|
