Item No.
|
Light source
|
Lens beam angle(°)
|
Consumption(watt)
|
Input Voltage(V)
|
Ik rate
|
|
82531(S/H/AS)
|
3*1W LED
|
8°/15°/25°/30°/45°/60°
|
3.2
|
DC12V/DC24V
AC100-240V
|
09
|
|
82632(S/H/AS)
|
3*2W LED
|
8°/15°/30°/45°/60°
|
6.2
|
DC12V/DC24V
AC100-240V
|
09
|
|
82533(S/H/AS)
|
3*1W RGB LED
|
8°/15°/30°/45°/60°
|
3.2
|
DC12V/DC24V
|
09
|
|
82634(S/H/AS)
|
3*2W RGB LED
|
8°/15°/30°/45°/60°
|
5.8
|
DC12V/DC24V
|
09
|
|
82636(S/H/AS)
|
3*3W RGB 3 IN 1 LED
|
25°/30°/45°/60°
|
9.2
|
DC12V/DC24V
|
09
|
|

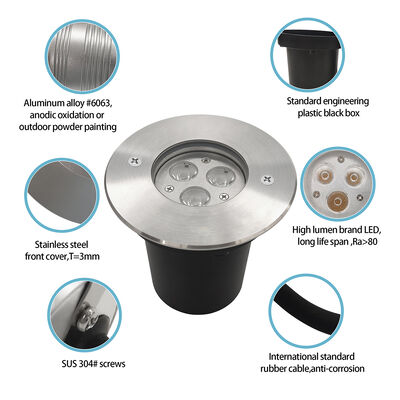

Material specifications
|
|
|
|
Housing
|
outdoor powder coated aluminum
|
|
|
Front cover
|
304# or 316#Stainless Steel
|
|
|
Lens
|
Optical lens,effciency≥85%
|
|
|
Glass
|
Tempered step glass T=8
|
|
|
Gasket
|
Molding shaped silicone seal
|
|
|
Operating temperature
|
(-20℃~40℃)
|
|
|
Power cable
|
H05RN-F2*0.75mm²L=0.5m(low voltage)
H05RN-F3*0.75mm²L=0.5m(for single color/high voltage)
H05RN-F4*0.75mm²L=0.5m(for RGB)
|
|
|
Mounting sleeve
|
ABS
|
|
