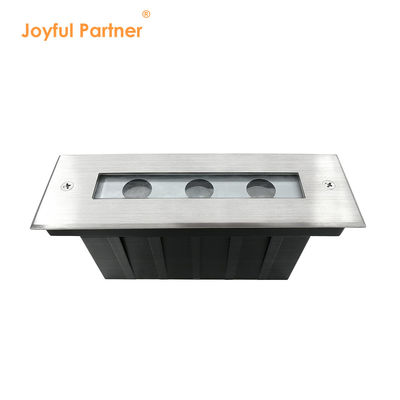

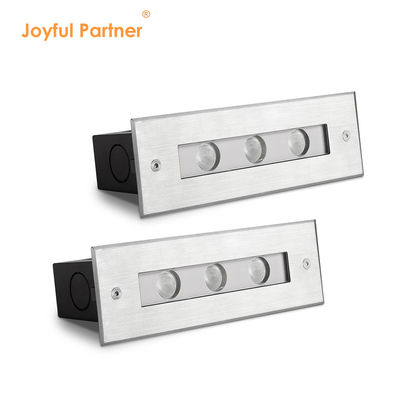

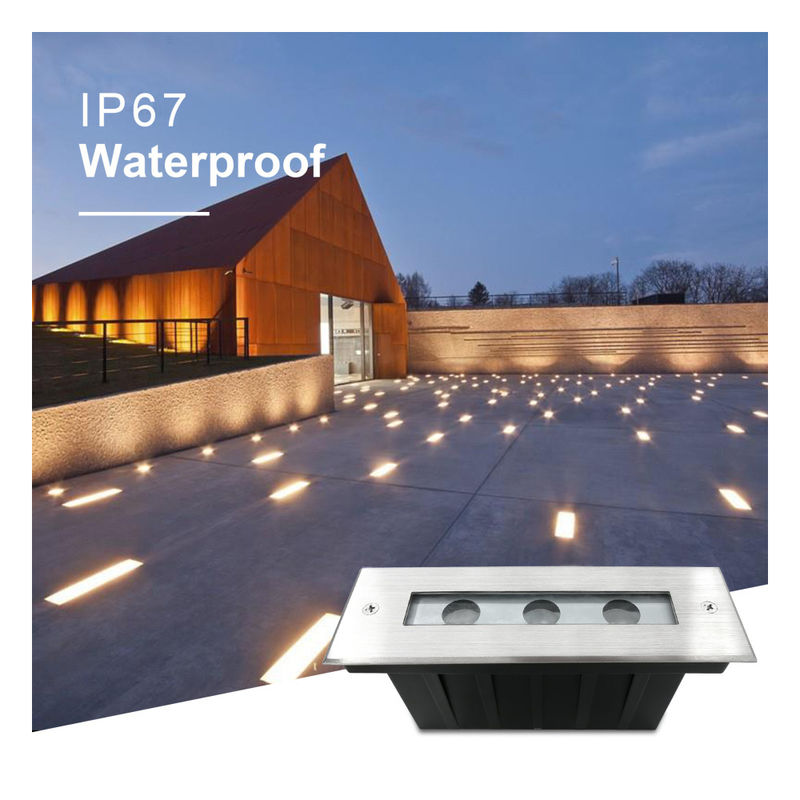

Recessed Underground Buried Light IP67 Waterproof Stainless Steel 316 DC24V LED Outdoor Garden Lamp
|
Item No.
|
Light source
|
Lens beam angle(°)
|
Consumption(watt)
|
Input Voltage(V)
|
Ik rate
|
|
820431(AS/H)
|
3*1W LED
|
8°/15°/25°/30°/45°/10*45°/asymmetrical lens
|
3.2
|
DC24V/AC100-240V
|
8
|
|
820432(AS/H)
|
3*2W LED
|
8°/15°/25°/30°/45°/10*45°/asymmetrical lens
|
6
|
DC24V/AC100-240V
|
8
|
|
8204067(H)
|
SMD3030*6pcs
|
frosted glass
(diffuser) |
3
|
DC24V/AC100-240V
|
8
|
|
820461(AS/H)
|
6*1W LED
|
8°/15°/25°/30°/45°/10*45°/asymmetrical lens
|
6.3
|
DC24V/AC100-240V
|
8
|
|
820462(AS/H)
|
6*2W LED
|
8°/15°/25°/30°/45°/10*45°/asymmetrical lens
|
12
|
DC24V/AC100-240V
|
8
|
|
8204107(H)
|
SMD3030*12pcs
|
frosted glass
(diffuser) |
6
|
DC24V/AC100-240V
|
8
|
|

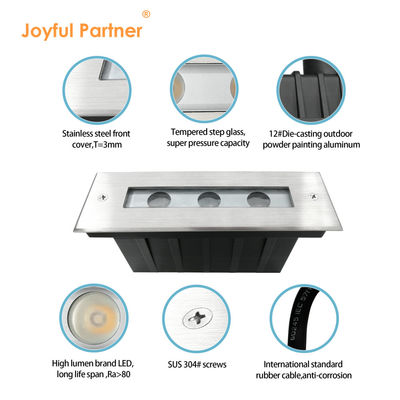

Material specifications
|
|
|
|
Housing
|
12#Die-casting outdoor powder painting aluminum.T=60-80μm
Adhesion of ISO Glass 1/ASTM Glass 4B |
|
|
Front cover
|
304# or 316#Stainless Steel
|
|
|
Lens
|
Optical lens,effciency≥85%
|
|
|
Glass
|
Tempered glass.T=8mm
|
|
|
Gasket
|
Molding shaped silicone double seal
|
|
|
Operating temperature
|
(-20℃~40℃)
|
|
|
Power cable
|
H05RN-F2*0.75mm²L=0.5m(low voltage)
H05RN-F3*0.75mm²L=0.5m(for single color/high voltage) H05RN-F4*0.75mm²L=0.5m(for RGB) |
|
|
Mounting sleeve
|
ABS
|
|
|
Optional accessory
|
Honeycomb
|
|
